Snapshot Deletion Lifecycle

This document describes the internal lifecycle of snapshot deletion in Apache Ozone, from the initial user request to the final physical removal of data and metadata.

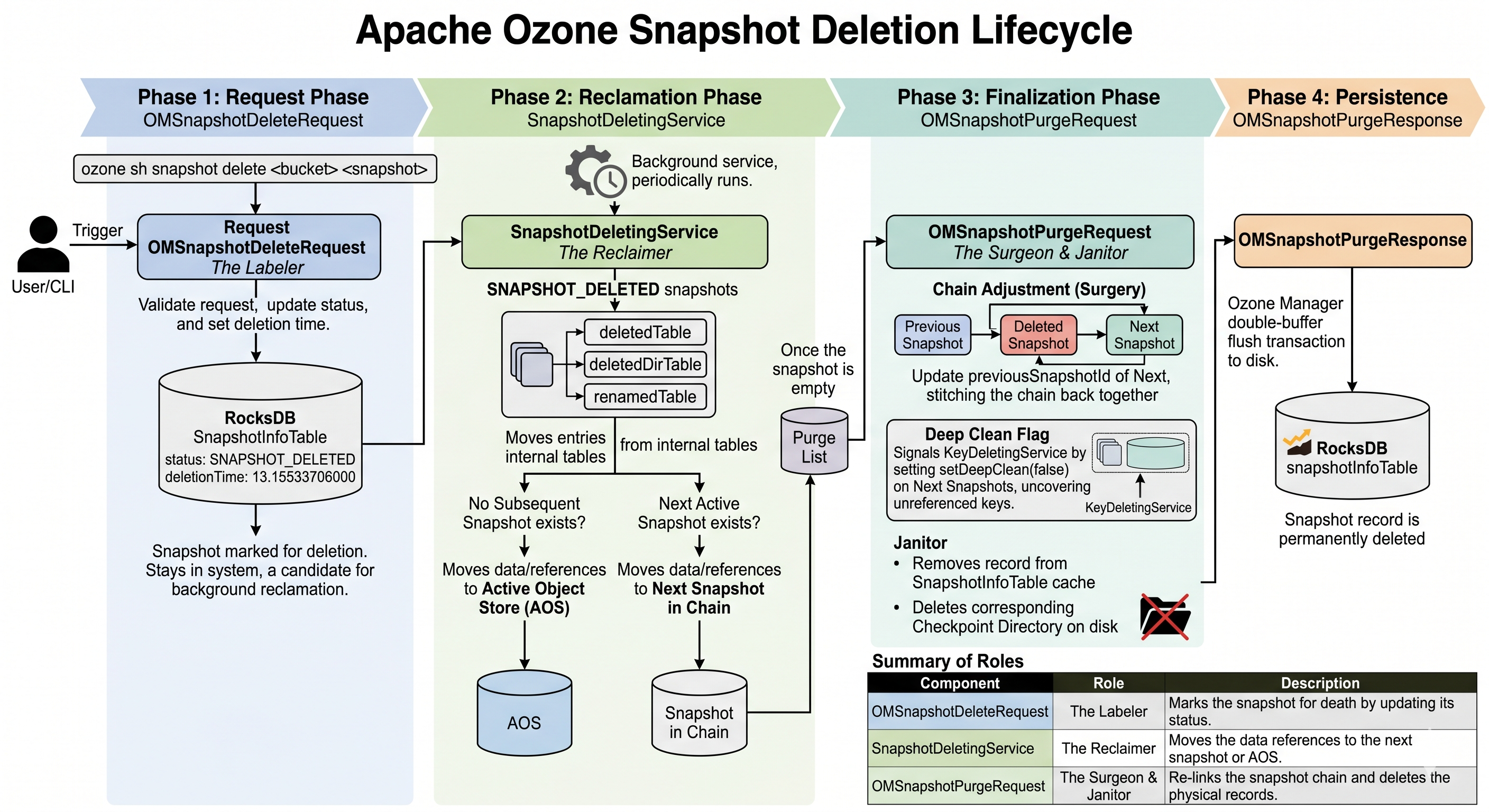

The snapshot deletion process is divided into four main phases:

1. Request Phase: OMSnapshotDeleteRequest

• Trigger: User executes the command ozone sh snapshot delete <bucket> <snapshot>.
• Operation:
  • The Ozone Manager (OM) receives the request and validates it.
  • The snapshot's status is updated to SNAPSHOT_DELETED in the SnapshotInfoTable.
  • The deletionTime is set to the current timestamp.
• Result: This phase only "labels" the snapshot for deletion. It does not yet adjust the snapshot chain or reclaim any data. The snapshot remains in the system but is now a candidate for the background reclamation service.

2. Reclamation Phase: SnapshotDeletingService

• Trigger: A background service that runs periodically.
• Operation:
  • The service identifies snapshots with the SNAPSHOT_DELETED status.
  • It processes the deleted snapshot's internal tracking tables: deletedTable, deletedDirTable, and renamedTable.
  • Data Moving: It moves entries from these tables to either:
    1. The next active snapshot in the chain (if one exists).
    2. The Active Object Store (AOS) if no subsequent snapshot exists.
• Settling: Once all keys and directories for the snapshot have been successfully moved (i.e., the snapshot's deleted tables are empty), the service collects the snapshot's DB key into a "purge list".

3. Finalization Phase: OMSnapshotPurgeRequest

• Trigger: Triggered by the SnapshotDeletingService once a snapshot is fully "empty" (all keys reclaimed).
• Chain Adjustment (The Surgeon): This is where the actual snapshot chain surgery occurs. The service updates the previousSnapshotId of the next snapshot in the chain to point to the deleted snapshot's predecessor, effectively "stitching" the chain back together.
• Deep Clean Flag: It sets setDeepClean(false) on the next snapshots. This signals the KeyDeletingService that it can now perform a "deeper" cleanup because a snapshot in the middle of the chain has been removed, potentially uncovering more keys that are no longer referenced by any snapshot.
• Removal (The Janitor): The snapshot record is removed from the SnapshotInfoTable cache, and the corresponding checkpoint directory on disk is deleted.

4. Persistence: OMSnapshotPurgeResponse

• Operation: The Ozone Manager double-buffer flushes the transaction to disk.
• Result: The snapshot record is physically and permanently deleted from the RocksDB snapshotInfoTable.

---

Summary of Roles

Component	Role	Description
OMSnapshotDeleteRequest	The Labeler	Marks the snapshot for death by updating its status.
SnapshotDeletingService	The Reclaimer	Moves the data references to the next snapshot or AOS.
OMSnapshotPurgeRequest	The Surgeon & Janitor	Re-links the snapshot chain and deletes the physical records.
