Apache Ozone Internals: Read Operation Implementation Guide

This guide provides a comprehensive trace of a read request in Apache Ozone, including metadata resolution, security (Block Tokens), Transparent Data Encryption (TDE), and Authorization (Ranger/Native ACLs).

1. Phase 1: Request & Authorization (Client & OM)​

1.1 Initiating the Request​

The application calls OzoneBucket.readKey(key). The client sends a getKeyInfo RPC to the Ozone Manager (OM).

1.2 OM: Authorization Check​

Before returning key metadata, the OM must authorize the user.

  1. Entry Point: OmMetadataReader.checkAcls() is called within the getKeyInfo flow.
  2. Authorizer Selection: Based on configuration (ozone.acl.authorizer.class), OM uses either:
    • Native Authorizer: Uses Ozone's internal ACLs stored in RocksDB.
    • Apache Ranger Authorizer: Delegates the decision to the Ranger Ozone Plugin (RangerOzoneAuthorizer).
  3. Authorization Logic:
    • OM builds an OzoneObj (Volume/Bucket/Key) and a RequestContext (User, IP, Action: READ).
    • Ranger Flow: The plugin checks its local cache of policies (periodically synced from the Ranger Admin server). If a policy allows READ for the user/group on that resource, access is granted.
    • Fallback: If Ranger is disabled or the Native authorizer is used, OM checks the object's ACL list for matching user/group permissions.

1.3 OM: Key & Encryption Resolution​

Once authorized:

  1. Key Lookup: OM finds the OmKeyInfo in the keyTable.
  2. Encryption Check: If TDE is enabled, the OmKeyInfo contains the EDEK (Encrypted Data Encryption Key) and the EZ Key Name.
  3. Block Retrieval: OM retrieves the OmKeyLocationInfo (Block IDs and Pipelines). Container locations are resolved using OM's container location cache; pipeline and placement metadata may be refreshed from SCM when needed. For locality-aware reads, OM can sort Datanodes within each pipeline by network distance using the network topology cached in OM (synchronized from SCM).
  4. Block Token Generation: OM generates a signed Block Token for each block using secret keys managed by the SCM.

OM returns OmKeyInfo (Metadata + EDEK + Block Tokens) to the client.

2. Phase 2: Decryption Setup (Client & KMS)​

2.1 Decrypting the EDEK​

If the key is encrypted:

  1. KMS Request: The client sends the EDEK to the KMS (Key Management Server).
  2. KMS Authorization: The KMS also performs an authorization check (often via Ranger KMS plugin) to ensure the user can use the EZ Key for decryption.
  3. DEK Retrieval: KMS returns the raw DEK (Data Encryption Key) to the client.

2.2 Initializing the Crypto Stream​

The client wraps the data stream in a CryptoInputStream initialized with the raw DEK and the IV from the metadata.

3. Phase 3: Data Retrieval (Client & Datanode)​

3.1 Fetching Encrypted Chunks​

If ozone.client.stream.readblock.enable is true (default is false), the client may issue an optional ReadBlock request instead. Otherwise, the client issues ReadChunk.

  • Security: The request includes the Block Token.
  • Datanode Validation: The Datanode verifies the token's signature using the Secret Keys it fetched from the SCM. This is the final "at-the-edge" authorization check.
  • Data Transfer: The Datanode reads the encrypted data from disk and streams it back.

3.2 On-the-fly Decryption​

  1. KeyInputStream receives encrypted bytes from the network.
  2. CryptoInputStream decrypts the bytes in the client's memory.
  3. The application receives the original plaintext data.

Summary of Authorization & Security Layers​

LayerComponentMechanismPurpose
IdentityRPC LayerKerberos / Delegation TokenIdentifies who is making the request.
Access ControlOMRanger or Native ACLsDetermines if the user can see/access the Key.
Data SecurityKMSEZ Master KeysProtects the Data Encryption Key (DEK).
Edge SecurityDatanodeBlock Tokens (SCM-signed)Ensures only authorized clients can read raw blocks.
At-Rest SecurityClient/DNAES-CTR (TDE)Ensures data is encrypted on physical disks.

Read Path Logic Flow​

 1 Application -> [OzoneClient]
 2                   |
 3         (1) getKeyInfo(Volume, Bucket, Key)
 4                   |
 5         [Ozone Manager] -> (2) [Ranger/Native Authorizer] (Access READ?)
 6                   |                 |-- Yes: Continue
 7                   |                 |-- No:  Throw PERMISSION_DENIED
 8                   |
 9         (3) Fetch OmKeyInfo (Metadata + `EDEK` + Block IDs)
10         (4) Sign Block Tokens using SCM Secret Keys
11                   |
12         <-- Returns OmKeyInfo --
13                   |
14         (5) [Client] -> KMS: decrypt(`EDEK`) -> returns `DEK`
15         (6) [Client] -> Datanode: ReadChunk (BlockToken), or ReadBlock (BlockToken) if ozone.client.stream.readblock.enable=true
16                   |
17         [Datanode] -> (7) Verify Block Token Signature
18                   |                 |-- Valid: Stream bytes
19                   |                 |-- Invalid: Reject
20                   |
21         (8) [Client] decrypts bytes using `DEK` -> returns Plaintext

System diagram​

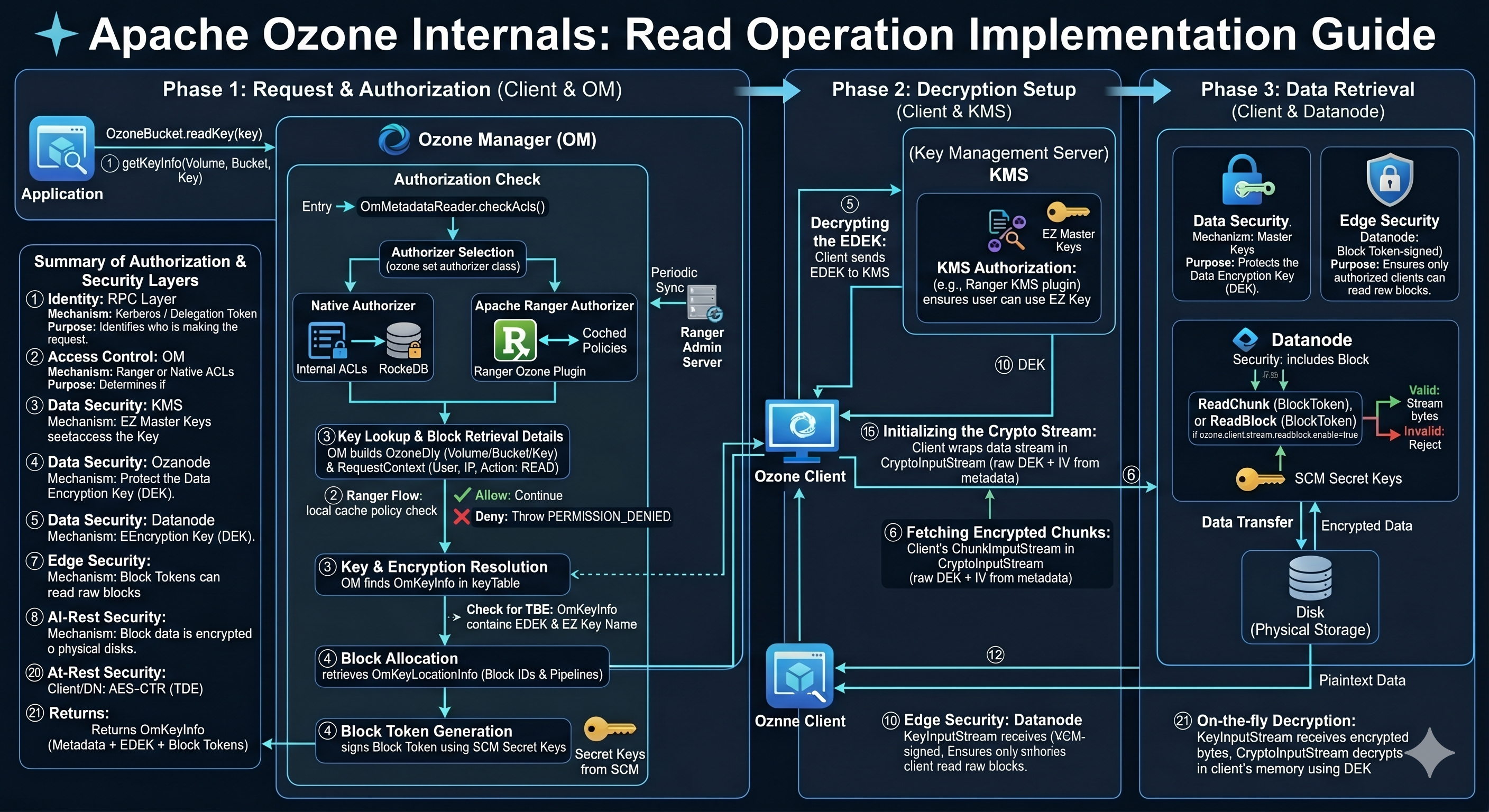

Apache Ozone Internals: Read Operation Implementation Guide — read path across Application, OM, KMS, Client, and Datanode
